All Types of Goods Panel

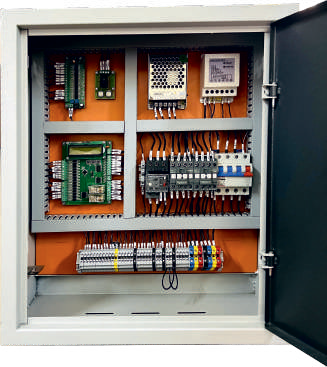

APB-501Compact manual door lift controller with 3.7–15KW motor, 4-stop down collective, smaller 550x480x200 cabinet, 12V DC output, and essential MCB & fuse protection.
Motar KW3.7 KW, 5.5KW, 7.5KW, 11 KW, 15 KW
Number of Stops4 Stops Down Collective
Reed TypeThree Reed / Floor Reed
Controller TypeManual Door
Display Output7 Segment
Overall Cabinet Size550 x 480 x 200
Cabinet Locks2Nos Chrome Plated Aesthetic Locks
Power supply for 12V/24V DCSMPS type, mounted on DIN rall / Panel Mounted;Input : 230V AC, output : 12V DC, 5Amps
Field terminations for Power TerminalsScrew terminals (Connectwell / Elmax make) provided of 4.0 sq mm wire capacity
Field terminations for Control TerminalsScrew terminals (Connectwell/ ELmax make) provided of 2.5 sq mm wire capacity
TransformerPrimary : 230V, AC, IPhase
MCB ProtectionMCB1 - 4Pole for 415-230V Power Incomer.;MCB2 - 1Pole for Panel Light
Fuse protectionGlass Fuse, 4Amps for 12/24V DC Control
Three Phase Power Failure RelayAPB / Gic / Selec
Controller InspectionPanel with U, D button and Selector switch
Landing door Jumper ProtectionProtection provided through connectors
